NACHI 28BC08S1NC2 Single Row Deep Groove Ball Bearing Gearbox Bearing Inner diameter 28mm

Name: NACHI 28BC08S1NC2 Single Row Deep Groove Ball Bearing Gearbox Bearing Inner diameter 28mm
Brand: NACHI
Price: 1 USD

China NACHI 28BC08S1NC2 Single Row Deep Groove Ball Bearing Gearbox Bearing Inner diameter 28mm factory

Brand Name : NACHI

Model Number : 28BC08S1NC2

Certification : ISO

Place of Origin : Japan

MOQ : 1 pcs

Price : negotiation

Payment Terms : T/T or western Union or PayPal

Supply Ability : 3,000pcs per month

Delivery Time : 3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : 28BC08S1NC2

Inner diameter : 28 mm

Outside diameter : 80 mm

Height : 21 mm

Stock : 42 piece

Weight : 0.3kg

Contact Now

28BC08S1NC2 Single Row Deep Groove Ball Bearing Gearbox Bearing

1.Type: deep groove ball bearing

2.Specification:

Bearing number	28BC08S1NC2
ID	28 mm
OD	80 mm
Thickness	21 mm
Weight	0.3 kg

3.Feature:

(1) Single row

(2) Shielded

(3) Japan origin

(4) Competitive price

(5) Rich stock

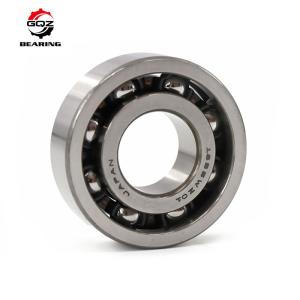

4.Bearing photos:

NACHI 28BC08S1NC2 Single Row Deep Groove Ball Bearing Gearbox Bearing Inner diameter 28mm

5. We also supply following angular contact ball bearing:

Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Mass
				dynamic	static	Fatigue load limit	Reference speed	Limiting speed
	d	D	B	C	C0	Pu
-	mm			kN		kN	r/min		kg
7200BEP	10	30	9	7,02	3,35	0,14	30000	30000	0,03
7200BECBP	10	30	9	7,02	3,35	0,14	30000	30000	0,03
7201BEP	12	32	10	7,61	3,8	0,16	26000	26000	0,036
7201BECBP	12	32	10	7,61	3,8	0,16	26000	26000	0,036
7201BEGAP	12	32	10	7,61	3,8	0,16	26000	26000	0,036
7301BEP	12	37	12	10,6	5	0,208	24000	24000	0,063
7202BEP	15	35	11	8,84	4,8	0,204	24000	24000	0,045
7202BECBP	15	35	11	9,5	5,1	0,216	26000	26000	0,045
7202BEGAP	15	35	11	9,5	5,1	0,216	26000	26000	0,045
7202BEGBP	15	35	11	9,5	5,1	0,216	26000	26000	0,045
7302BEP	15	42	13	13	6,7	0,28	20000	20000	0,081
7302BECBP	15	42	13	13	6,7	0,28	20000	20000	0,081
7203BEP	17	40	12	10,4	5,5	0,236	20000	20000	0,064
7203BEY	17	40	12	11,1	6,1	0,26	20000	20000	0,064
7203BECBP	17	40	12	11	5,85	0,25	22000	22000	0,064
7203BEGAP	17	40	12	11	5,85	0,25	22000	22000	0,064
7203BECBM	17	40	12	11	5,85	0,25	22000	22000	0,07
7303BEP	17	47	14	15,9	8,3	0,355	19000	19000	0,11
7303BECBP	17	47	14	15,9	8,3	0,355	19000	19000	0,11
7303BEGAP	17	47	14	15,9	8,3	0,355	19000	19000	0,11
7204BEP	20	47	14	13,3	7,65	0,325	18000	18000	0,11
7204BECBM	20	47	14	13,3	7,65	0,325	18000	19000	0,11
7204BECBY	20	47	14	14	8,3	0,355	18000	18000	0,11
7204BECBP	20	47	14	14,3	8,15	0,345	19000	19000	0,11
7204BEGAP	20	47	14	14,3	8,15	0,345	19000	19000	0,11
7204BEGBP	20	47	14	14,3	8,15	0,345	19000	19000	0,11
7304BEP	20	52	15	17,4	9,5	0,4	16000	16000	0,14
7304BEY	20	52	15	19	10,4	0,44	16000	16000	0,15
7304BECBY	20	52	15	19	10,4	0,44	16000	16000	0,15
7304BECBP	20	52	15	19	10	0,425	18000	18000	0,14
7304BEGAP	20	52	15	19	10	0,425	18000	18000	0,14
7304BEGBP	20	52	15	19	10	0,425	18000	18000	0,14
7304BECBPH	20	52	15	19	10	0,425	18000	18000	0,14
7304BECBM	20	52	15	19	10	0,425	18000	18000	0,15
7205BEP	25	52	15	14,8	9,3	0,4	15000	15000	0,13
7205BEY	25	52	15	15,6	10,2	0,43	15000	15000	0,13
7205BECBY	25	52	15	15,6	10,2	0,43	15000	15000	0,13
7205BEGAY	25	52	15	15,6	10,2	0,43	15000	15000	0,13

If you want to buy NACHI 28BC08S1NC3 bearing,just contact us!Or send email directly to: tommy@gqbearing.com

Company information:

NACHI 28BC08S1NC2 Single Row Deep Groove Ball Bearing Gearbox Bearing Inner diameter 28mm

FAQ

How to improve the lifespan of 28BC08S1NC2 deep groove ball bearings under heavy load conditions?

For heavy load applications, verify the correct selection of the 28BC08S1NC2 bearing, potentially upgrading to a model with higher load capacity. Enhance the lubrication strategy by using heavy-duty lubricants recommended for such loads, increasing lubrication frequency, or implementing an automatic lubrication system to minimize friction and heat generation. Additionally, improve equipment balance and alignment to reduce unnecessary extra loads, thereby prolonging the life of the 28BC08S1NC2 deep groove ball bearing.

What is the correct method to install 28BC08S1NC2 deep groove ball bearings to prevent premature failure?

Proper installation is vital for the longevity of 28BC08S1NC2 bearings. Ensure a clean installation environment and use appropriate tools and techniques. Avoid direct impact; instead, utilize a press or heating method for installation, ensuring concentricity with the shaft and housing bore, and applying appropriate preload as per manufacturer instructions. This guarantees the correct installation of 28BC08S1NC2 bearings for smooth operation.

How to protect 28BC08S1NC2 deep groove ball bearings in harsh environments?

In corrosive, dusty, or humid environments, using 28BC08S1NC2 bearings with integral seals or adding external seals can effectively prevent contaminants from entering the bearing. Opting for corrosion-resistant materials, like stainless steel versions, enhances durability further. Regularly inspect seal integrity, promptly cleaning and replacing damaged seals, while maintaining proper lubrication, are crucial for maintaining the stable operation of 28BC08S1NC2 deep groove ball bearings in harsh conditions.
