High precision internal port thread joint connecting rod SI16T/K 16mm SI16T/K (SI/SA/ PHS/ POS/NHS/SAZJ/CM/CF/GE)
Joint bearing structure than simply rolling bearing, which is dominated by an inner and outer sphere within
a spherical outer ring. Bearings are generally used for lower-speed swing motion (ie angular motion), the
sliding surface of the spherical shape, but also for tilting movement within a certain range of angles (ie,
aligning movement), the supporting shaft misalignment and shaft housing bore when a large degree, still
work.
feature:
Self-aligning,High temperature resistance,carrying capability,self-lubrication
application:
Engineering hydraulic cylinders,Forging machines,Construction machinery, Auto shock absorber etc.
| Product details |
| Structure | rod end |
| Seals Type | Open |
| Material | Ring Material Chrome Steel ,Carbon steel,Stainless steel |
| Clearance | C0,C2,C3,C4,C5 |
| Vibration | Zv1,Zv2 and Zv3 |
| Precision Rating | P0,P6,P5 |
| Greese | As your requirement, such as SRL ,PS2, Alvania R12 and so on . |
| Guarantee | One year. |
| Application | Home appliances, low noise and high speed electric motors, |
| automotive components, pumps, machinery. |
| Package | Single box or according to buyers requirement . |
| Place of Origin | China (Mainland) |
| MOQ | 10PCS |
| Service | (1) Prompt Delivery |
| (2) OEM |
| (3) Good Service Offered |
| (4) Buyer Label Offered |
| Payment Term | T/T or L/C or paypal or western union |
| Port | Qingdao or Tanjin or Shanghai port |
| Details | 1. Fast delivery |
2. Competitive price
|

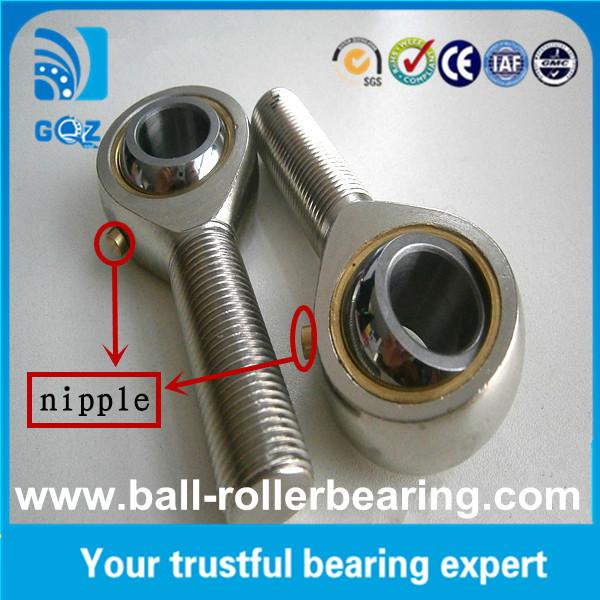

picture showing :
| Model | d | D3 | d2 | d5 | S | B | L5 | C1 | h1 | L3 | d4 | L4 | a° | Max Load | Weight(kg) | old model |
| PHSA5 | 5 | M5×0.8 | 18 | 12.5 | 10 | 8 | 4 | 6 | 27 | 10 | 9 | 36 | 13 | | | SI5T/K |
| PHSA6 | 6 | M6×1 | 20 | 13 | 11 | 9 | 5 | 6.75 | 30 | 12 | 10 | 45 | 13 | 7.2 | 0.027 | SI6T/K |
| PHSA8 | 8 | M8×1.25 | 24 | 16 | 14 | 12 | 5 | 9 | 36 | 16 | 12.5 | 48 | 13 | 11.6 | 0.046 | SI8T/K |
| PHSA10 | 10 | M10×1.5 | 28 | 19 | 17 | 14 | 6.5 | 10.5 | 43 | 20 | 15 | 57 | 13 | 14.5 | 0.076 | SI10T/K |
| PHSA12 | 12 | M12×1.75 | 32 | 22 | 19 | 16 | 6.5 | 12 | 50 | 22 | 17.5 | 66 | 13 | 17 | 0.115 | SI12T/K |
| PHSA14 | 14 | M14×2 | 36 | 25 | 22 | 19 | 8 | 13.5 | 57 | 25 | 20 | 75 | 13 | 24 | 0.17 | SI14T/K |
| PHSA16 | 16 | M16×2 | 40 | 27 | 22 | 21 | 8 | 15 | 64 | 28 | 22 | 84 | 13 | 28.5 | 0.23 | SI16T/K |
| PHSA18 | 18 | M18×1.5 | 46 | 31 | 27 | 23 | 10 | 16.5 | 71 | 32 | 25 | 94 | 13 | 35 | 0.32 | SI18T/K |
| PHSA20 | 20 | M20×1.5 | 50 | 34 | 30 | 25 | 10 | 18 | 77 | 33 | 27.5 | 102 | 13 | 40 | 0.42 | SI20T/K |
| PHSA22 | 22 | M22×1.5 | 54 | 37 | 32 | 28 | 12 | 20 | 84 | 37 | 30 | 111 | 13 | 52 | 0.54 | SI22T/K |
| PHSA25 | 25 | M24×2 | 60 | 42 | 30 | 31 | 12 | 22 | 94 | 42 | 33.5 | 124 | 13 | 60 | 0.75 | SI25T/K |
| PHSA28 | 28 | M27×2 | 66 | 46 | 41 | 35 | 14 | 26 | 103 | 41 | 37 | 136 | 13 | | | SI28T/K |
| PHSA30 | 30 | M30×2 | 70 | 50 | 41 | 37 | 15 | 25 | 110 | 51 | 40 | 145 | 13 | 81 | 1.3 | SI30T/K |
