51118 Single Direction Thrust Ball Bearing With Seat Washers 9012022mm

Brand Name : FAG

Model Number : 51118

Certification : ISO

Place of Origin : Germany

MOQ : 1 pcs

Price : negotiation

Payment Terms : T/T or western Union or PayPal

Supply Ability : 3,000pcs per month

Delivery Time : 3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : 51118

ID : 90mm

OD : 120mm

Thickness : 22mm

Cage type : Steel

Row type : Double row

Direction type : Single direction

Origin : Germany

Contact Now

51118 Single Direction Thrust Ball Bearing With Seat Washers

1. Specification:

Specification of Bearing
Bearing type	Thrust ball bearing
Brand type	INA,IKO,SKF,FAG,NSK and so on
Precision Rating	Germany and so on
Vibration	Z1V1,Z2V2,Z3V3
Durability	Long
Material	chrome steel
Certificate	ISO9001:2008
Main market abroad	South America,USA,European,Southeast Asia,Middle East
Packaging Details	1. inner: polyester bag outer:paper carton 2. industrial standard packing 3. Poly bag+box+packing 4. as your order
Delivery Time	Within 3-5 days after receiving your subscription
Payment Terms	T/T,Western Union,Paypal

2. Feature:

(1) Double row

(2) Single direction

(3) Steel cage
(4) Contact angle: >45^o

(5) Rich stock

(6) Fast delivery

3. Cage type:

(1) With M: Brass cage

(2) Without M: Steel cage

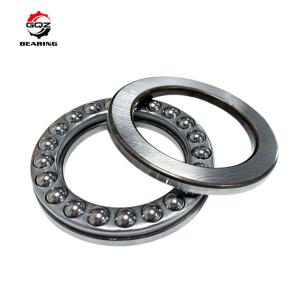

4. Bearing Picture:

51118 Single Direction Thrust Ball Bearing With Seat Washers 90*120*22mm

5. We aslo supply following thrust ball bearing:

ITEM	SIZE (mm)						WEIGHT(kg)
	d	D	T	d1smin	D1sman	rsmin
	d	D	T	d1smin	D1sman	rsmin
51100	10	24	9	11	24	0.3	0.0193
51101	12	26	9	13	26	0.3	0.0214
51102	15	28	9	16	28	0.3	0.0243
51103	17	30	9	18	30	0.3	0.0253
51104	20	35	10	21	35	0.3	0.0376
51105	25	42	11	26	42	0.6	0.0562
51106	30	47	11	32	47	0.6	0.0665
51107	35	52	12	37	52	0.6	0.0826
51108	40	60	13	42	60	0.6	0.120
51109	45	65	14	47	65	0.6	0.150
51110	50	70	14	52	70	0.6	0.160
51200	10	26	11	12	26	0.6	0.0293
51201	12	28	11	14	28	0.6	0.0324
51202	15	32	12	17	32	0.6	0.0444
51203	17	35	12	19	35	0.6	0.0506
51204	20	40	14	22	40	0.6	0.0773
51205	25	47	15	27	47	0.6	0.109
51206	30	52	16	32	52	0.6	0.142
51207	35	62	18	37	62	1	0.147
51208	40	68	19	42	68	1	0.278
51209	45	73	20	47	73	1	0.338
51210	50	78	22	52	78	1	0.380
