Brass Retainer Eccentricity Ratio 2 Eccentric Cylindrical Roller Bearing 200752202

Product Categories
Wuxi Guangqiang Bearing Trade Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Brass Retainer Eccentricity Ratio 2 Eccentric Cylindrical Roller Bearing 200752202

Brand Name : GQZ or OEM

Model Number : 200752202

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1 pcs

Price : negotiation

Payment Terms : T/T or western Union or PayPal

Supply Ability : 3,000pcs per month

Delivery Time : 3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : 200752202

ID : 15mm

OD : 40mm

Height : 28mm

Row Number : Double row

Eccenricity Ratio : 2

Cage type : brass

Lubrication : grease or oil

Contact Now

Brass Retainer Eccentricity Ratio 2 Eccentric Cylindrical Roller Bearing 200752202

1. Specification:

FAG cylindrical roller bearings is widely used in high precision instrument,equipment,

CNC machine and so on.And NSK products is one of the most famous bearing enterprise

which sells bearings in high quality and long use life.

Specification of Bearing

Bearing type

Eccentric Bearing

Brand type

GQZ

Precision Rating

P0,P6,P5,P4,P2

Place of origin

China

Vibration

Z1V1,Z2V2,Z3V3

Durability

Long

Material

Bearing steel

Certificate

ISO9001:2008

Main market abroad

South America,USA,European,Southeast

Asia,Middle East

Packaging Details

1. inner: polyester bag outer:paper carton

2. industrial standard packing

3. Poly bag+box+packing

4. 4. as your order

Delivery Time

Within 3-5 days after receiving

your subscription

Payment Terms

T/T,Western Union,Paypal

2. Feature:

(1) Double row

(2) Brass retainer

(3) Eccentricity ratio: 2
(4) Long-term quality guarantee

3. Type of cylindrical roller bearing

a. single row cylindrical roller bearings, cage, mainly of the NU,NJ,NUP, and N designs.

b. double row cylindrical roller bearings, caged, mainly of the NNU and NN designs.

c. multi-row cylindrical roller bearings, caged.

d. single row full complement cylindrical roller bearings, mainly of the NCF and NJG designs.

e. double row full complement cylindrical roller bearings, mainly of the NNF design.

f. multi-row full complement cylindrical roller bearings, with four rollers.

4. Series of cylindrical roller bearing

  1. Types NU, N, NNU, and NN are suitable as free-end bearings.
  2. Types NJ and NF can sustain limited axial loads in one direction.
  3. Types NH and NUP can be used as fixed-end bearings.
  4. NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
  5. The inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the marked side is on the outside.
  6. The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
  7. The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring

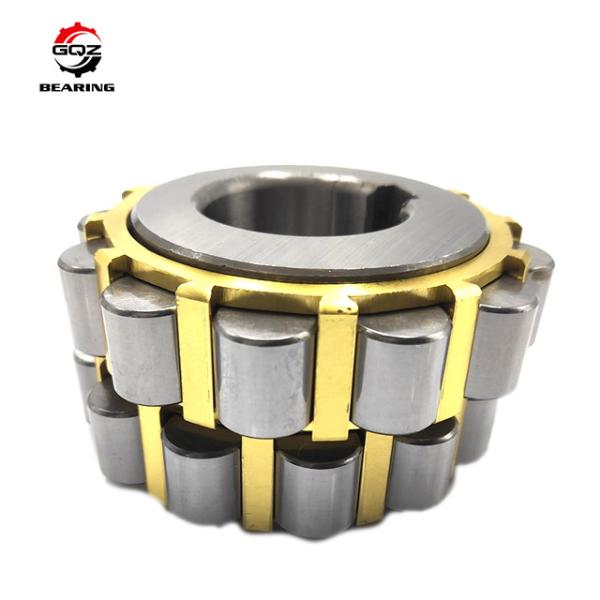

5. Bearing Picture:

Brass Retainer Eccentricity Ratio 2 Eccentric Cylindrical Roller Bearing 200752202

Brass Retainer Eccentricity Ratio 2 Eccentric Cylindrical Roller Bearing 200752202

Brass Retainer Eccentricity Ratio 2 Eccentric Cylindrical Roller Bearing 200752202

6. We also supply following eccentric bearings:

Bearing No. Size(mm) Lad L/P Slot Mass
d D L r e N N b t1 kg
50712200 10 33.9 12 0.7 0.5 13700 11600 14000 18000 3 1.3 0.059
70712200 10 33.9 12 0.7 0.65 13700 11600 14000 18000 3 1.3 0.059
80712200 10 33.9 12 0.7 0.75 13700 11600 14000 18000 3 1.3 0.059
100712200 10 33.9 12 0.7 1 13700 11600 14000 18000 3 1.3 0.059
130712200 10 33.9 12 0.7 1.25 13700 11600 14000 18000 3 1.3 0.059
150712200 10 33.9 12 0.7 1.5 13700 11600 14000 18000 3 1.3 0.059
180712200 10 33.9 12 0.7 1.75 13700 11600 14000 18000 3 1.3 0.059
200712200 10 33.9 12 0.7 2 13700 11600 14000 18000 3 1.3 0.059
70712201 12 40 14 0.7 0.65 15500 14500 12000 16000 4 1.8 0.09
80712201 12 40 14 0.7 0.75 15500 14500 12000 16000 4 1.8 0.09
100712201 12 40 14 0.7 1 15500 14500 12000 16000 4 1.8 0.09
130712201 12 40 14 0.7 1.25 15500 14500 12000 16000 4 1.8 0.09
150712201 12 40 14 0.7 1.5 15500 14500 12000 16000 4 1.8 0.09
200712201 12 40 14 0.7 2 15500 14500 12000 16000 4 1.8 0.09
250712201 12 40 14 0.7 2.5 15500 14500 12000 16000 4 1.8 0.09
50712202 15 40 14 0.7 0.5 18000 17200 12000 16000 5 2.3 0.087
80712202 15 40 14 0.7 0.75 18000 17200 12000 16000 5 2.3 0.087
100712202 15 40 14 0.7 1 18000 17200 12000 16000 5 2.3 0.087
150712202 15 40 14 0.7 1.5 18000 17200 12000 16000 5 2.3 0.087
180712202 15 40 14 0.7 1.75 18000 17200 12000 16000 5 2.3 0.087
200712202 15 40 14 0.7 2 18000 17200 12000 16000 5 2.3 0.087
250712202 15 40 14 0.7 2.5 18000 17200 12000 16000 5 2.3 0.087
50752202 15 40 28 0.7 0.5 31300 34500 12000 16000 5 2.3 0.17
70752202 15 40 28 0.7 0.65 31300 34500 12000 16000 5 2.3 0.17
80752202 15 40 28 0.7 0.75 31300 34500 12000 16000 5 2.3 0.17
100752202 15 40 28 0.7 1 31300 34500 12000 16000 5 2.3 0.17
130752202 15 40 28 0.7 1.25 31300 34500 12000 16000 5 2.3 0.17
150752202 15 40 28 0.7 1.5 31300 34500 12000 16000 5 2.3 0.17
180752202 15 40 28 0.7 1.75 31300 34500 12000 16000 5 2.3 0.17
200752202 15 40 28 0.7 2 31300 34500 12000 16000 5 2.3 0.17
250752202 15 40 28 0.7 2.5 31300 34500 12000 16000 5 2.3 0.17
300752202 15 40 28 0.7 3 31300 34500 12000 16000 5 2.3 0.17
70752202K 15 45 30 0.7 0.65 40100 48000 11000 14000 5 2.3 0.25
80752202K 15 45 30 0.7 0.75 40100 48000 11000 14000 5 2.3 0.25
100752202K 15 45 30 0.7 1 40100 48000 11000 14000 5 2.3 0.25
130752202K 15 45 30 0.7 1.25 40100 48000 11000 14000 5 2.3 0.25
150752202K 15 45 30 0.7 1.5 40100 48000 11000 14000 5 2.3 0.25
200752202K 15 45 30 0.7 2 40100 48000 11000 14000 5 2.3 0.25
250752202K 15 45 30 0.7 2.5 40100 48000 11000 14000 5 2.3 0.25
300752202K 15 45 30 0.7 3 40100 48000 11000 14000 5 2.3 0.25

If any interest,please contact us.
