RB11012UU C0 Clearance RB 11012 Crossed Cylindrical Roller Bearing 110x135x12 Mm

Product Categories

Wuxi Guangqiang Bearing Trade Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

RB11012UU C0 Clearance RB 11012 Crossed Cylindrical Roller Bearing 110x135x12 Mm

Brand Name : OEM

Model Number : RB11012UU

Certification : ISO9001:2008

Place of Origin : Japan

MOQ : 1 pcs

Price : negotiation

Payment Terms : T/T or western Union or PayPal

Supply Ability : 3,000pcs per month

Delivery Time : 3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Structure : Cylindrical

Type : Roller

Application : Vibration machinary,CNC machine and so on

HS CODE : 84825000

Contact Now

Slew machine Cross roller bearing RB11012UU C0 clearance RB 11012 Bearing 110x135x12 mm cross roller bearing RB11012

Product Description

Crossed roller bearing is based on cylindrical roller being arranged vertically to each other in a 900 V groove rolling surface through the isolation piece, so cross roller bearing can withstand load from multi-direction, like: Radial, axial and torque. Since the cross roller ring achieves high rigidity and the precision can reach up to P2, P4, despite the mininum possible dimensions of the inner and outer rings, it is optimal for applications such as industrial robot, rotation of the machining center, precision rotary worktable, medical machine, calculator, military industry, IC manufacturing devices and other equipments.

Slew machine Cross roller bearing RB11012UU C0 clearance Features

1.Bearing RB11012 manufacturer ------ Favorable prices

2.Own factory ------ Dicountable on large quantity

3.High quality ------ ISO9001:2008 proved

4.OEM service ------ Design to your own demands

5.Good after-sale service ------ Help you to track your goods

6.Sample available ------ Make sure the quality

7.Good location in shanghai ------ Convenient transportation

Our range of products:
• Angular Contact Ball Bearing
• Ball Bearing
• Cylindrical Roller Bearing
• Deep Groove Ball Bearing
• Double Row Ball Bearing
• Extra Large Size Ball Bearing
• Linear Bushing
• Miniature Ball Bearing
• Needle Roller Bearing
• Pillow Block
• Precision Ball Bearing
• Radial Ball Bearing
• Roller Bearing
• Self-Aligned Ball Bearing
• Single Row Ball Bearing
• Spherical Roller Bearing
• Super Precision Ball Bearing
• Tapered Roller Bearing
• Thrust Ball Bearing
• Thrust Roller Bearing
• Wider Inner Ring Ball Bearing
• Etc.

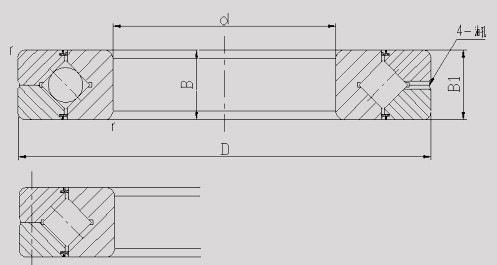

Slew machine Cross roller bearing RB11012UU C0 clearance design draft :

RB11012UU C0 Clearance RB 11012 Crossed Cylindrical Roller Bearing 110x135x12 Mm

Slew machine Cross roller bearing RB11012UU C0 clearance models series :

Model	d/mm	D/mm	dp/mm	B/mm	Weight/kg
RB10020	100	150	123	20	1.45
RB11012	110	135	121.8	12	0.4
RB11015	110	145	126.5	15	0.75
RB11020	110	160	133	20	1.56
RB12016	120	150	134.2	16	0.72
RB12025	120	180	148.7	25	2.62
RB13015	130	160	144.5	15	0.72
RB13025	130	190	158	25	2.82
RB14016	140	175	154.8	16	1
RB14025	140	200	168	25	2.96
RB15013	150	180	164	13	0.68
RB15025	150	210	178	25	3.16
RB15030	150	230	188	30	5.3
RB16025	160	220	188.6	25	3.14
RB17020	170	220	191	20	2.11
RB18025	180	240	210	25	3.44
RB19025	190	240	211.9	25	2.99
RB20025	200	260	230	25	4
RB20030	200	280	240	30	6.7
RB20035	200	295	247.7	35	9.6
RB22025	220	280	250.1	25	4.1
RB24025	24	300	269	25	4.5
RB25025	250	310	277.5	25	5
RB25030	250	330	287.5	30	8.1
RB25040	250	355	300.7	40	14.8
RB30025	300	360	328	25	5.9
RB30035	300	395	345	35	13.4
RB30040	300	405	351.6	40	17.2
RB35020	350	400	373.4	20	3.9
RB40035	400	480	440.3	35	14.5
RB40040	400	510	453.4	40	23.5

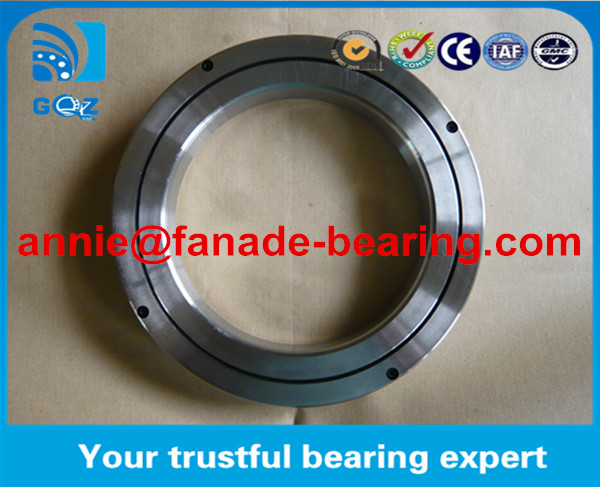

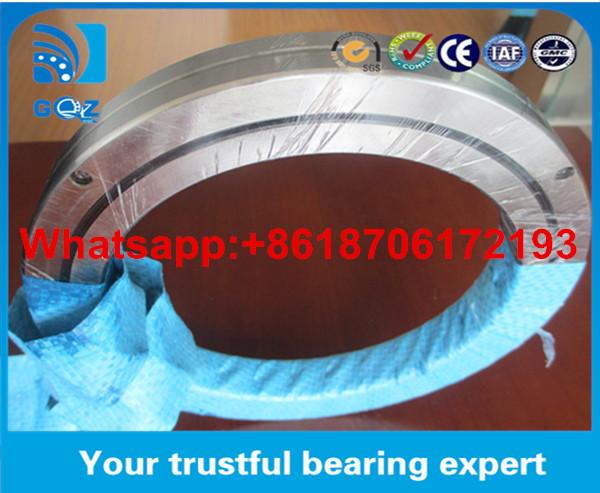

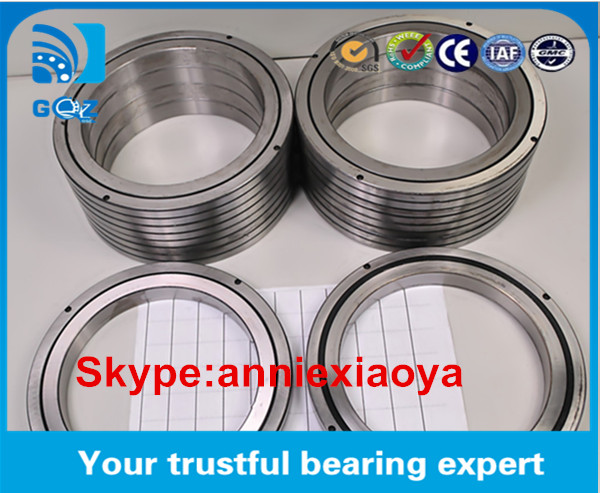

Pictures of cylindrical roller bearings

RB11012UU C0 Clearance RB 11012 Crossed Cylindrical Roller Bearing 110x135x12 Mm
